Last change of this documentation page: 2022-06-02 of SolidGeometry 2.1
exp_2015_02_25- EXPERMENT to create 4x4 flexible hinge strips

exp_2015_02_25% exp_2015_02_25 - EXPERMENT to create 4x4 flexible hinge strips
% (by Tim Lueth, VLFL-Lib, 2015-FEB-25 as class: EXPERIMENTS)
%
% Testing the possibility to create foil hinges by considering Erhard
% (2008), page 361ff. The result is written into a binary STL file for
% printing.
%
% LITERATURE:
% - Erhard, Gunter (2008): Konstruieren mit Kunststoffen, Carl Hanser
% Verlag, München, 4. Auflage
%
% SG=exp_2015_02_25
% === OUTPUT RESULTS ======
% SG: Solid geometry of the parts
%

exp_2015_02_24(s,w,e,x,y)- EXAMPLE how to create contour for a flexible Hinge

exp_2015_02_24(s,w,e,x,y)% exp_2015_02_24(s,w,e,x,y) - EXAMPLE how to create contour for a
% flexible Hinge
% (by Tim Lueth, VLFL-Lib, 2015-FEB-24 as class: KINEMATICS AND FRAMES)
%
% LITERATURE:
% - Erhard, Gunter (2008): Konstruieren mit Kunststoffen, Carl Hanser
% Verlag, München, 4. Auflage
%
% [PL,SG]=exp_2015_02_24([s,w,e,x,y])
% === INPUT PARAMETERS ===
% s: thickness of the hinge
% w: radius to bend
% e: strain value; default is 40% (0.4)
% x:
% y:
% === OUTPUT RESULTS ======
% PL: Point List
% SG: Solid Geoemtry
%

exp_2015_02_23 (r,th,st)- EXPERIMENT Testing perforated PLates by Air pressure and water pressure

exp_2015_02_23 (r,th,st)% exp_2015_02_23 (r,th,st) - EXPERIMENT Testing perforated PLates by Air
% pressure and water pressure
% (by Tim Lueth, VLFL-Lib, 2015-FEB-23 as class: MODELING PROCEDURES)
%
% This box can be filled with water (0.1l) or put ontop of the mouth to
% breath trough. During the printing test performed 2015-02-24, it became
% clear that it is possible to breath event trough hole with diameter
% 0.25mm. (Status of: 2015-02-23)
%
% exp_2015_02_23([r,th,st])
% === INPUT PARAMETERS ===
% r: radius of the holes
% th: height of the membrane plate
% st: step size between the holes
%

exp_2015_02_22- EXPERIMENT that return rotating shells

exp_2015_02_22% exp_2015_02_22 - EXPERIMENT that return rotating shells
% (by Tim Lueth, VLFL-Lib, 2015-FEB-22 as class: MODELING PROCEDURES)
%
% exp_2015_02_22
%

SGofCPLsphere(CPL,Ri,d,ns)- returns solid geometry of a wrapped shell

SGofCPLsphere(CPL,Ri,d,ns)% SGofCPLsphere(CPL,Ri,d,ns) - returns solid geometry of a wrapped shell
% (by Tim Lueth, VLFL-Lib, 2015-FEB-22 as class: MODELING PROCEDURES)
%
% See also: SGofCPLsphere, SGbeating, SGofCPLz, SGofCPLT
%
% SG=SGofCPLsphere(CPL,Ri,d,[ns])
% === INPUT PARAMETERS ===
% CPL: Closed Polygon List
% Ri: Radius of the sphere used for wrapping
% d: Thickness/height of the shell
% ns: distance between auxiliary points; default is sofrd(Ri)
% === OUTPUT RESULTS ======
% SG: Solid geometry
%
% EXAMPLE: Create an wrapped circular patch
% SGofCPLshere(CPLofPL({PLcircle(30),PLcircle(10)}),20,0.5)
%

SGplateunder(SG,h,d,ez,FN)- returns a plate that is completely under the solid

SGplateunder(SG,h,d,ez,FN)% SGplateunder(SG,h,d,ez,FN) - returns a plate that is completely under the solid
% (by Tim Lueth, VLFL-Lib, 2015-FEB-22 as class: MODELING PROCEDURES)
%
% plate shape is a parallel projection of the outer contour onto the x/y
% plane. This fnctn is used by VLFLimageoftext. It is also used for
% SGcombbackofSG wich is mainly the same.
% ATTENTION if d <0; the opponent frame it not an opponent, only if the
% parts are separated (Status of: 2021-01-30)
%
% Introduced first in SolidGeometry 2.1
%
% See also: VLFLimageoftext, SGcombbackofSG, SGbase4PCB, SGcover4PCB
%
% SGP=SGplateunder(SG,[h,d,ez,FN])
% === INPUT PARAMETERS ===
% SG: Solid Geometry
% h: [h os r] height oversize and radius; default is [1 0 0]
% d: gap between solid and plate (can be negative); default is -1e-3
% ez: option vector for postion of the plate; default is '' ~ [0 0 -1]
% FN: optional frame wildcards for SGTcopyasopponent
% === OUTPUT RESULTS ======
% SGP: Plate under SG
%
% EXAMPLE:
% SG=SGcopypatternXYZ(SGcylinder,[3 1 1],5,true); SGfigure(SG);
% SGplateunder(SG,'','',[1 0 0]),
% SGunion(SGplateunder(SG,'','',''),SG)
% SGunion(SGplateunder(SG,'','',[0 0 1]),SG)
% SGunion(SGplateunder(SG,'','',[0 1 0]),SG)
% SGplateunder(SGbox,[1 4 4],1,[0 0 -1],'B')
%
% See also: VLFLimageoftext, SGcombbackofSG, SGbase4PCB, SGcover4PCB
%
%
% Copyright 2015-2021 Tim C. Lueth

exp_2015_02_21 (R,stext,H,n)- creates a honory medallie

exp_2015_02_21 (R,stext,H,n)% exp_2015_02_21 (R,stext,H,n) - creates a honory medallie
% (by Tim Lueth, VLFL-Lib, 2015-FEB-21 as class: MODELING PROCEDURES)
%
% exp_2015_02_21([R,stext,H,n])
% === INPUT PARAMETERS ===
% R: Radius; default is 35
% stext: Text; dafault is todays date
% H: Height; default is R/10
% n: number of edges; default is circle
%

SGfourBarLinkageKit(task,2,3)- Creation kit for Four-Bar-Linkages

SGfourBarLinkageKit(task,2,3)% SGfourBarLinkageKit(task,2,3) - Creation kit for Four-Bar-Linkages
% (by Tim Lueth, VLFL-Lib, 2015-FEB-20 as class: KINEMATICS AND FRAMES)
%
% Depending on the input parameter this fnctns returns parts of a
% creation kit or a complete creation kit for physical experiments with
% 4-Bar-linkages, gears etc:
% It is similar to exp_2015_02_19 but with a more primitive modeler.
% 'Knob': Knob for turning parts manually or as stopper
% 'Bar': Basic elements of a linkage
% 'Spacer': spacing element required for some configurations
% 'Bolt': turning bolt as axis to connect two bars as joint
% 'Shaft': shaft for fixed connection between two bars/parts
% 'Wheel': Turning wheel with sockets for shafts and bolts
% 'Gear': Turning gear (m=1) with sockets for shafts and bolts
% 'Brick': Basic element with sockets for shafts and bolts
% 'Plate': Square grid of bricks as base plate for experiments
% 'Test': Small plate plus limited numbers of bars for test the 3D-Printer
% 'all': All parts for a 4-Bar-Linkage construction kit
% 'kit': Same as all but including a box/case
%
% (Status of: 2018-08-24)
%
% Introduced first in SolidGeometry 2.1
%
% See also: fourBarLinkageCPL, fourBarLinkage, fourBarLinkageKit
%
% SG=SGfourBarLinkageKit([task,2,3])
% === INPUT PARAMETERS ===
% task: String for Task, default is bar
% 2: 2nd parameter for shapes
% 3: 3rn parameter for shapes/mode
% === OUTPUT RESULTS ======
% SG:
%
% EXAMPLE:
% fourBarLinkageKit ('gear')
% fourBarLinkageKit ('all')
% fourBarLinkageKit ('kit')
%
%
% See also: fourBarLinkageCPL, fourBarLinkage, fourBarLinkageKit
%
%
% Copyright 2015-2018 Tim C. Lueth

SGstretching(A,dx,xlim)- cuts a solid geometry in x and stretches in x

SGstretching(A,dx,xlim)% SGstretching(A,dx,xlim) - cuts a solid geometry in x and stretches in x
% (by Tim Lueth, VLFL-Lib, 2015-FEB-20 as class: SURFACES)
%
% A=SGstretching(A,dx,xlim)
% === INPUT PARAMETERS ===
% A: Solid geometry
% dx: add d to all x-coodinates
% xlim: for all x-coordinates > xlim
% === OUTPUT RESULTS ======
% A: Stretched solid geoemtry
%

SGstripfields(SG)- remove unneccessary fields in SG structs

SGstripfields(SG)% SGstripfields(SG) - remove unneccessary fields in SG structs
% (by Tim Lueth, VLFL-Lib, 2015-FEB-20 as class: AUXILIARY PROCEDURES)
%
% removes CPL,PL,EL (Status of: 2017-03-20)
%
% See also: SGsample
%
% SG=SGstripfields(SG)
% === INPUT PARAMETERS ===
% SG: Solid Geoemtry
% === OUTPUT RESULTS ======
% SG: Solid Geoemtry
%

VLplotmotion(VL,i)- draws position, speed and acceleration of a VL

VLplotmotion(VL,i)% VLplotmotion(VL,i) - draws position, speed and acceleration of a VL
% (by Tim Lueth, VLFL-Lib, 2015-FEB-16 as class: KINEMATICS AND FRAMES)
%
% VLplotmotion(VL,[i])
% === INPUT PARAMETERS ===
% VL: Vertex list
% i: optional angle list
%

exp_2015_02_14- Experiment that shows the symbolic equation solution of a 4-Bar-Linkage

exp_2015_02_14% exp_2015_02_14 - Experiment that shows the symbolic equation solution of a 4-Bar-Linkage
% (by Tim Lueth, VLFL-Lib, 2015-FEB-13 as class: EXPERIMENTS)
%
% This Matlab script/fnctn shows how the analytical solution for the
% forward kinematics of a Four-Bar-Linkage can be calcuated. Typically
% the final result is used later for numerical fnctn, i.e. the calculated
% symbolic equation is used as code line in a fnctn such as
% 'fourBarLinkage' (Status of: 2015-02-18)
%
% Introduced first in SolidGeometry 2.1
%
% See also: fourBarLinkage
%
% exp_2015_02_14
%
% See also: fourBarLinkage
%
%
% Copyright 2015-2018 Tim C. Lueth

fourBarLinkage(a,b,c,d,wb,k1,k2)- multi purpose function for a 4-Bar-Linkage

fourBarLinkage(a,b,c,d,wb,k1,k2)% fourBarLinkage(a,b,c,d,wb,k1,k2) - multi purpose fnctn for a 4-Bar-Linkage
% (by Tim Lueth, VLFL-Lib, 2015-FEB-13 as class: KINEMATICS AND FRAMES)
%
% The core of this fnctn are the two analytical solutions for the
% calculation of the closed 4-Bar-linkage angle. The fnctn calculates for
% given link length a, b, c, d and an angle for phi-b, the two solutions
% for closing the linkage and returns the solution points
% without an output parameter the configuration is plotted.
% without input parameter wb, a drawing is created to explain the linkage
% Gestell = Ground
% Kurbel = Crank
% Koppel = Coupler
% Schwinge = Follower
% (Status of: 2018-06-02)
%
% Introduced first in SolidGeometry 2.1
%
% See also: exp_2015_02_14, exp_2013_06_15, exp_2013_06_16, fourbarlinkage
%
% [C,s,D1,D2,wb,wa1,wa2]=fourBarLinkage(a,b,c,d,[wb,k1,k2])
% === INPUT PARAMETERS ===
% a: ground distance; alternative Point 1
% b: crank length; alternative Point 2
% c: coupler length; alternative Point 3
% d: Follower length; alternative Point 4
% wb: rotation angle at a/b
% k1: C+k1*(D1-C)
% k2: orthogonal to k1 in mm
% === OUTPUT RESULTS ======
% C: Point C
% s: solution exist or not
% D1: Point D1
% D2: Point D2
% wb: rotation angle at a/b
% wa1: rotation angle at a/d (solution 1)
% wa2: rotation angle at a/d (solution 2)
%
% EXAMPLE: To see the use simply try
% fourBarLinkage (30,40,30,20);
% fourBarLinkage (30,40,30,20,[],0.5);
% fourBarLinkage (30,10,30,20,[],0.5);
%
% See also: exp_2015_02_14, exp_2013_06_15, exp_2013_06_16, fourbarlinkage
%
%
% Copyright 2015-2018 Tim C. Lueth

exp_2015_02_13- shows the symbolic equation solution for a three bar linkage

exp_2015_02_13% exp_2015_02_13 - shows the symbolic equation solution for a three bar
% linkage
% (by Tim Lueth, , 2015-FEB-13 as class: EXPERIMENTS)
%
% Mainly for educational use!
% (Status of: 2015-02-18)
%
% exp_2015_02_13
%

KMchain(KM,chain)- calculates a kinematic structure from a given frame chain

KMchain(KM,chain)% KMchain(KM,chain) - calculates a kinematic structure from a given frame
% chain
% (by Tim Lueth, VLFL-Lib, 2015-FEB-10 as class: KINEMATICS AND FRAMES)
%
% KM=KMchain(KM,chain)
% === INPUT PARAMETERS ===
% KM: Kinematic model {SG,'Name',HT-Matrix}
% chain: string 'A.A-A.B-'
% === OUTPUT RESULTS ======
% KM: Kinematic model with adjusted Frames KM{:,3}
%
% EXAMPLE: Show a robot example:
%
%

KMplot (KM)- plots all parts of a kinematic model

KMplot (KM)% KMplot (KM) - plots all parts of a kinematic model
% (by Tim Lueth, VLFL-Lib, 2015-FEB-10 as class: KINEMATICS AND FRAMES)
%
% A kinematic model is a cell list {nx3} of the format {,
% , 4x4-Matrix}. The Solid geometry is a struct consisting of
% vertex list (VL) and facet list (FL) and a cell list of 4x4
% Frame-matrices (T) and a cell list of Frame-name-strings (Tname).
% (Status of: 2015-02-10)
%
% KMplot(KM)
% === INPUT PARAMETERS ===
% KM: Kinematic model
%

KMT(KM,N);- returns a HT-Matrix from a kinematic model

KMT(KM,N);% KMT(KM,N); - returns a HT-Matrix from a kinematic model
% (by Tim Lueth, VLFL-Lib, 2015-FEB-09 as class: KINEMATICS AND FRAMES)
%
% A kinematik model currently consists of a list of solids an a list of
% strings that can be used to identify the solid in the list.
% An error occurs if either the solid name is not existing in the model
% or the frame (Status of: 2015-02-09)
%
% T=KMT(KM,N);
% === INPUT PARAMETERS ===
% KM: Kinematic Model {Solid ' Name'}
% N: Name "Solid.Frame"
% === OUTPUT RESULTS ======
% T: HT Matrix
%

exp_2015_02_09- EXPERIMENT to show a serial kinematic chain

exp_2015_02_09% exp_2015_02_09 - EXPERIMENT to show a serial kinematic chain
% (by Tim Lueth, VLFL-Lib, 2015-FEB-09 as class: EXPERIMENTS)
%
% exp_2015_02_09
%

SGT(SGN,N,SN)- returns a called HT-Frame from a solid's struct

SGT(SGN,N,SN)% SGT(SGN,N,SN) - returns a called HT-Frame from a solid's struct
% (by Tim Lueth, VLFL-Lib, 2015-FEB-03 as class: KINEMATICS AND FRAMES)
%
% =======================================================================
% OBSOLETE (2018-07-29) - USE 'SGTget, SGTplot' INSTEAD
% =======================================================================
%
% Will be removed in future release. Use SGTget instead
% if no output parameter is specified, the solid is plotted including the
% frames (Status of: 2018-07-29)
%
% Introduced first in SolidGeometry 2.1
%
% See also: [ SGTget, SGTplot ] ; SGTget, SGTset, SGTplot, SGTremove,
% SGTui
%
% [T,a]=SGT(SGN,[N,SN])
% === INPUT PARAMETERS ===
% SGN: Solid Geoemtry (VL,FL,TName,T)
% N: String
% SN: Name of Solid Geoemtry for plotting
% === OUTPUT RESULTS ======
% T: Transformation matrix
% a: index if Frame in Frame cells list
%
% EXAMPLE:
% loadweb JACO_robot.mat;
% SGfigure; view(-30,30); SGTplot(JC0,'','A')
%
% See also: [ SGTget, SGTplot ] ; SGTget, SGTset, SGTplot, SGTremove,
% SGTui
%
%
% Copyright 2015-2018 Tim C. Lueth

SGTremove(SG,N)- removes a transformation frame from a solid geometry

SGTremove(SG,N)% SGTremove(SG,N) - removes a transformation frame from a solid geometry
% (by Tim Lueth, VLFL-Lib, 2015-FEB-01 as class: KINEMATICS AND FRAMES)
%
% to reduce problems with wrong parameter calls, only the name 'all'
% should remove all frames of the solid.
% Anyway, currently also the call without any name parameter (nargin==1)
% will remove all frames; (Status of: 2020-09-06)
%
% Introduced first in SolidGeometry 2.1
%
% See also: SGTget, SGTset, SGTplot, SGTui, SGTframeplot, SGTrename,
% SGTsetofFS, SGTretain
%
% SG=SGTremove(SG,N)
% === INPUT PARAMETERS ===
% SG: SG (VL/FL plus Tname, T, TFiL)
% N: string with name of Frame; 'all' removes all frames
% === OUTPUT RESULTS ======
% SG: SG without named frame
%
% EXAMPLE: Set and remove a frame
% SGTui(SGbox([30 20 10]),'A'), SG=ans; pause(1); SGTremove(SG,'A')
% SGTui(SGbox([30 20 10]),'A'), SG=ans; pause(1); SGTremove(SG,'all')
%
% See also: SGTget, SGTset, SGTplot, SGTui, SGTframeplot, SGTrename,
% SGTsetofFS, SGTretain
%
%
% Copyright 2015-2022 Tim C. Lueth

SGTui(SG,N,fe,FS,Rz)- returns a HT matrix for a manuel selected union space

SGTui(SG,N,fe,FS,Rz)% SGTui(SG,N,fe,FS,Rz) - returns a HT matrix for a manuel selected union space
% (by Tim Lueth, VLFL-Lib, 2015-FEB-01 as class: KINEMATICS AND FRAMES)
%
% (2021-12-21) THIS FNCTN SUFFERS FROM A LOT OF CHANGES IN THE MATLAB'S
% USER INTERFACE since 2020a
% THERE IS NOW - Control Chart Interactivity
% AND CHANGES IN - zoom
% see also BUGREPORT_zoom
%
%
% This is a user interface for manually selecting union patches or tips
% (vertices) to generate frames for linking HT matrices to the solid
% geometries. It support 3 types of frames
% a) tips
% b) planar surfaces
% c) spherical surfaces with feature edges
% SGT changed in SG-Lib 3.9 and supports also centers of circular borders
% (Status of: 2020-07-24)
%
% Introduced first in SolidGeometry 2.1
%
% See also: SGTget, SGTset, SGTplot, SGTremove, VLFLsurfaceofSGT, TofFS,
% TofFSui
%
% [SGN,T,h,Rorg]=SGTui(SG,[N,fe,FS,Rz])
% === INPUT PARAMETERS ===
% SG: Solid Geometry
% N: Name of the new/replaced Frame
% fe: feature edge angle; default 0.08; use 1 for freeform surfaces
% FS: Optional string selector for center points such as 'R1'
% Rz: Optional Rz rotation angle
% === OUTPUT RESULTS ======
% SGN: New SG with Tname, T, TFiL
% T: Transformation matrix
% h: handle to graphic
% Rorg:
%
% EXAMPLE: load AIM_SGrobot; SG3=SGTremove(SG3,'all');
% SG3=SGTui(SG3,[],0.3)
%
% See also: SGTget, SGTset, SGTplot, SGTremove, VLFLsurfaceofSGT, TofFS,
% TofFSui
%
%
% Copyright 2015-2021 Tim C. Lueth

SGmelting(SG)- returns a surface model without intrusion of solids

SGmelting(SG)% SGmelting(SG) - returns a surface model without intrusion of solids
% (by Tim Lueth, VLFL-Lib, 2015-FEB-01 as class: 3D MANUFACTURING)
%
% =======================================================================
% OBSOLETE (2017-08-08) - USE FAMILY 'SGsurfacemeltbool' INSTEAD
% =======================================================================
%
% This fnctn is necessary if slicer programs as part of the 3D
% manufacturing process are unable to handle intrusions of separated
% surface models within one STl-File.
% It is slow since it uses intensively SGbool (Status of: 2015-02-11)
%
% Introduced first in SolidGeometry 2.1
%
% See also: [ SGsurfacemeltbool ] ; SGbool
%
% SGN=SGmelting(SG)
% === INPUT PARAMETERS ===
% SG: Surface model that contains separated surfaces
% === OUTPUT RESULTS ======
% SGN:
%
% See also: [ SGsurfacemeltbool ] ; SGbool
%
%
% Copyright 2015-2017 Tim C. Lueth

TR3mountingfaces(TR3,fi,fe)- finds connected facets with same normal vector

TR3mountingfaces(TR3,fi,fe)% TR3mountingfaces(TR3,fi,fe) - finds connected facets with same normal vector
% (by Tim Lueth, VLFL-Lib, 2015-FEB-01 as class: SURFACES)
%
% Powerful but slow/recursive fnctn to detect points that defined planar
% and spherical surfaces.
% Auxiliary fnctn developed originally for and used in SGTui (Status of:
% 2018-08-01)
%
% Introduced first in SolidGeometry 2.1
%
% See also: TR3mountingfaces, CVLdimclassifier, MLofSG, SGTui
%
% [FIL,nv,FnL,NnL,RL,CVL,TR3]=TR3mountingfaces(TR3,fi,[fe])
% === INPUT PARAMETERS ===
% TR3: Surface triangulation of a solid
% fi: singe facet index
% fe: feature edge angle; default is 0
% === OUTPUT RESULTS ======
% FIL: all facets connected to first facet with the same normal vector
% nv: normal vector of this facet
% FnL: all neigbor facets of FIL. WARNING: Always empty if fe>0
% NnL: normal vector angle difference to nv of FnL
% RL: Radial list created by CVLdimclassifier
% CVL: CLosed Vertex list used for CVLdimclassifier
% TR3: TR# is case that an SG was used as input parameter
%
% EXAMPLE:
% SG=SGtransR(SGsample(25),rot(pi/6,0,pi/2));
% TR3=triangulation(SG.FL,SG.VL);
% [a,b,c,d,RL,CVL]=TR3mountingfaces(TR3,60,1);
% SGfigure; h=SGplot(SG); setplotlight(h,'r',0.1); CVLplot(CVL);
% VLplot(RL(:,1:3),'k*',5);
%
% See also: TR3mountingfaces, CVLdimclassifier, MLofSG, SGTui
%
%
% Copyright 2015-2018 Tim C. Lueth

SGpacking(SGC,dim,dist,ez,turn)- returns a package of all solids of a cell list

SGpacking(SGC,dim,dist,ez,turn)% SGpacking(SGC,dim,dist,ez,turn) - returns a package of all solids of a cell list
% (by Tim Lueth, VLFL-Lib, 2015-JAN-31 as class: 3D MANUFACTURING)
%
% arranges the solids in a cell list of solids in a specified volume
% (Status of: 2018-08-21)
%
% Introduced first in SolidGeometry 2.1
%
% See also: SGsurfaces, SGanalyzeGroupParts, SGboxing, SGboxpacking,
% SGpatternXYZ, SGcopyrotZ, SGarrangeSG, SGarrangeSGC, SGCaddSGn, SGCaddSG
%
% [SGN,SG]=SGpacking(SGC,[dim,dist,ez,turn])
% === INPUT PARAMETERS ===
% SGC: Cell list of solid geometries
% dim: dimension of package, default is [85 65 100] or 'eos'
% dist: minimal distance between solids; default is 1;
% ez: optional ez vector for turning limitation; default is empty;
% turn: true== turn to flat; false==unchanged orientation; default is true
% === OUTPUT RESULTS ======
% SGN: Packed solid geometry as one solid
% SG: Packed solid geometry as cell list
%
% EXAMPLE:
% loadweb JACO_robot.mat; SGpacking(JACO,[600 500 500],10,'',false)
% loadweb JACO_robot.mat; SGpacking(JACO,[600 500 500],10,'',true)
%
% See also: SGsurfaces, SGanalyzeGroupParts, SGboxing, SGboxpacking,
% SGpatternXYZ, SGcopyrotZ, SGarrangeSG, SGarrangeSGC, SGCaddSGn, SGCaddSG
%
%
% Copyright 2015-2019 Tim C. Lueth

binpacking3D(LAY,BOXL,grid)- returns a straight forward bin packing

binpacking3D(LAY,BOXL,grid)% binpacking3D(LAY,BOXL,grid) - returns a straight forward bin packing
% (by Tim Lueth, VLFL-Lib, 2015-JAN-31 as class: AUXILIARY PROCEDURES)
%
% h/2 is a good estimation for a layout size [h/2 h/2 300] if object
% height differs
% (Status of: 2015-01-31)
%
% [BOXL,h]=binpacking3D([LAY,BOXL,grid])
% === INPUT PARAMETERS ===
% LAY: Layout dimensions; default [100,60,80]
% BOXL: nx4 [index size-x size-y size-z]
% grid: grid size; default is 1 mm
% === OUTPUT RESULTS ======
% BOXL: nx4 [index pos-x pos-y pos-z]
% h: estimation of a square side length if all bin have the same heigth
%
% EXAMPLE: Just enter: binpacking3D
%

PLtransT(PL,T)- rotates and moves a point list nx2

PLtransT(PL,T)% PLtransT(PL,T) - rotates and moves a point list nx2
% (by Tim Lueth, VLFL-Lib, 2015-JAN-30 as class: ANALYTICAL GEOMETRY)
%
% Introduced first in SolidGeometry 2.1
%
% See also: PLtransP, PLtransR, PLtrans, PLtrans0, PLtrans1, PLtransC
%
% PL=PLtransT(PL,T)
% === INPUT PARAMETERS ===
% PL: Point list nx2
% T: Transformation matrix 2x3 or 3x3
% === OUTPUT RESULTS ======
% PL: Point list nx2
%
% See also: PLtransP, PLtransR, PLtrans, PLtrans0, PLtrans1, PLtransC
%
%
% Copyright 2015-2018 Tim C. Lueth

PLtrans1(PL)- returns a point list moved into the first quadrant

PLtrans1(PL)% PLtrans1(PL) - returns a point list moved into the first quadrant
% (by Tim Lueth, VLFL-Lib, 2015-JAN-30 as class: ANALYTICAL GEOMETRY)
%
% Introduced first in SolidGeometry 2.1
%
% See also: PLtransP, PLtransR, PLtrans, PLtrans0, PLtransT, PLtransC
%
% PL=PLtrans1(PL)
% === INPUT PARAMETERS ===
% PL: Point list nx2
% === OUTPUT RESULTS ======
% PL: Point list nx2
%
% See also: PLtransP, PLtransR, PLtrans, PLtrans0, PLtransT, PLtransC
%
%
% Copyright 2015-2018 Tim C. Lueth

PLtrans0(PL)- returns an origin centered point list

PLtrans0(PL)% PLtrans0(PL) - returns an origin centered point list
% (by Tim Lueth, VLFL-Lib, 2015-JAN-30 as class: AUXILIARY PROCEDURES)
%
% Introduced first in SolidGeometry 2.1
%
% See also: PLtransP, PLtransR, PLtrans, PLtrans1, PLtransT, PLtransC
%
% PL=PLtrans0(PL)
% === INPUT PARAMETERS ===
% PL: Point list nx2
% === OUTPUT RESULTS ======
% PL: Point list nx2
%
% See also: PLtransP, PLtransR, PLtrans, PLtrans1, PLtransT, PLtransC
%
%
% Copyright 2015-2018 Tim C. Lueth

PLtrans(PLin,T)- multi transformation modes for a point list

PLtrans(PLin,T)% PLtrans(PLin,T) - multi transformation modes for a point list
% (by Tim Lueth, VLFL-Lib, 2015-JAN-30 as class: ANALYTICAL GEOMETRY)
%
% Does currently not support a cells of points list
% Combines PLtrans0, PLtrans1, PLtransP, PLtransR, PLtransT depending on
% the transformation value
%
% (Status of: 2018-07-31)
%
% Introduced first in SolidGeometry 2.1
%
% See also: PLtransP, PLtransR, PLtrans0, PLtrans1, PLtransT, PLtransC
%
% [PLout,varargout]=PLtrans(PLin,T)
% === INPUT PARAMETERS ===
% PLin: Point list nx2
% T: Transformation Value, Vector, or Matrix
% === OUTPUT RESULTS ======
% [Lout,varargout]=PLtrans(PLin,T)
%
% if size(T,1)==1 && size(T,2)==1
% if T==0]: Point list nx2
% [Lout,varargout]=PLtrans(PLin,T)
%
% if size(T,1)==1 && size(T,2)==1
% if T==0]: not used yet
%
% EXAMPLE: try:
% PLtrans(PLcircle(10),[rotdeg(40) [10;0]])
% PLtrans(rand(20,2),0)
% PLtrans(rand(20,2),1)
% PLtrans(rand(20,2),[10, 0])
% PLtrans(rand(20,2),[10; 0])
% PLtrans(rand(20,2),rot(pi/3))
% PLtrans(rand(20,2),rotdeg(40))
% PLtrans(rand(20,2),[rotdeg(40) [10;0]])
%
% See also: PLtransP, PLtransR, PLtrans0, PLtrans1, PLtransT, PLtransC
%
%
% Copyright 2015-2018 Tim C. Lueth

AIM_Robot- returns a solid geometry for a robot used in AIM lectures

AIM_Robot% AIM_Robot - returns a solid geometry for a robot used in AIM lectures
% (by Tim Lueth, VLFL-Lib, 2015-JAN-30 as class: MODELING PROCEDURES)
%
% exatly the same as exp_2015_01_30 (Status of: 2015-06-08)
%
% SGrobot=AIM_Robot
% === OUTPUT RESULTS ======
% SGrobot: Solid Geometry of a printable Robot for AIM
%

exp_2015_01_30- returns a solid geometry for a robot used in AIM lectures

exp_2015_01_30% exp_2015_01_30 - returns a solid geometry for a robot used in AIM
% lectures
% (by Tim Lueth, VLFL-Lib, 2015-JAN-30 as class: MODELING PROCEDURES)
%
% SGrobot=exp_2015_01_30
% === OUTPUT RESULTS ======
% SGrobot: Solid Geometry of a printable Robot for AIM
%

gets(allargins,paramstr,tab)- processes automatically the varargins of a function

gets(allargins,paramstr,tab)

plotT2P(p,c,s,w,N)- plots a HT matrix as straight line vector

plotT2P(p,c,s,w,N)% plotT2P(p,c,s,w,N) - plots a HT matrix as straight line vector
% (by Tim Lueth, VLFL-Lib, 2015-JAN-27 as class: VISUALIZATION)
%
% Introduced first in SolidGeometry 2.1
%
% See also: pplot, lplot, tfplot, tlplot, slplot, plotTP, plotL, plotT,
% T2plot
%
% plotT2P(p,[c,s,w,N])
% === INPUT PARAMETERS ===
% p: Point or
% c: color
% s: width
% w: String for name
% N: Name of Frame
%
% See also: pplot, lplot, tfplot, tlplot, slplot, plotTP, plotL, plotT,
% T2plot
%
%
% Copyright 2015-2021 Tim C. Lueth

slplot (p,ez,c,w,l,d)- straight line plot

slplot (p,ez,c,w,l,d)% slplot (p,ez,c,w,l,d) - straight line plot
% (by Tim Lueth, VLFL-Lib, 2015-JAN-26 as class: VISUALIZATION)
%
% See also: getvar, pplot, lplot, tfplot, tlplot, plotTP, plotL, plotT,
% T2Plot
%
% slplot(p,[ez,c,w,l,d])
% === INPUT PARAMETERS ===
% p: starting point
% ez: direction if straight line
% c: line color
% w: line width; default is 1
% l: line length; default is 10
% d: color of the starting point
% === PROPERTY NAMES =====
% 'color' : Color of the straight line; default is 'r--'
% 'point' : Color of the start point; default is 'k.'
% 'length' : Length of the line; default is 10
% 'lineWidth' : Width of the straight line; default is 1
% 'color' :
% 'point' :
% 'length' :
% 'lineWidth' :
%
% EXAMPLE: Plot a green straight line
% slplot([0 0 0],[1 1 1],'color','g--')
%

VMpseudo3D(V,lim,maxc,s)- returns an 2D image of pseudo 3D rendered surface

VMpseudo3D(V,lim,maxc,s)% VMpseudo3D(V,lim,maxc,s) - returns an 2D image of pseudo 3D rendered surface
% (by Tim Lueth, VLFL-Lib, 2015-JAN-26 as class: VOXELS)
%
% Use matlab fnctns permute and flip and view to produce the desired
% output (Status of: 2017-02-16)
%
% See also: VM, VMimage, VMimrot90, VMmontage, VMplot, VMreaddicom,
% VMreaddicomdir, VMuidicom
%
% I=VMpseudo3D(V,lim,[maxc,s])
% === INPUT PARAMETERS ===
% V: Voxel model
% lim: surface intensity value
% maxc: maximum used color; default is 4095
% s: cut value: start to display the real slice values; default is 0
% === OUTPUT RESULTS ======
% I: Image
%
% EXAMPLE:
% I=VMpseudo3D(permute(V,[2 3 1]),1600,4095,100);
% imshow(I,[0 4095]); axis square, view (-90,90); show
% close all; VMpseudo3D(flip(permute(V,[3 2 1]),1),1400,'',200);
%

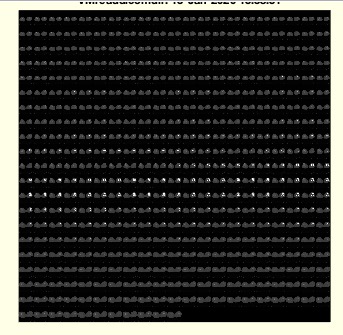

VMmontage(V)- plots all images of an image stack into one figure

VMmontage(V)% VMmontage(V) - plots all images of an image stack into one figure
% (by Tim Lueth, VLFL-Lib, 2015-JAN-24 as class: VOXELS)
%
% Based on Matlab fnctn montage (Status of: 2017-04-02)
%
% See also: VMimage, VMintensityscale, VMresize, VMimrot90, VMplot,
% VMpseudo3D, VMreaddicom, VMreaddicomdir, VMuidicom
%
% h=VMmontage(V)
% === INPUT PARAMETERS ===
% V: Voxel model
% === OUTPUT RESULTS ======
% h: handle of image
%

VLscatter(VL,C,n,cmap)- plots a vertex list with a corresponding image intensity list

VLscatter(VL,C,n,cmap)% VLscatter(VL,C,n,cmap) - plots a vertex list with a corresponding image intensity list
% (by Tim Lueth, VLFL-Lib, 2015-JAN-22 as class: VOXELS)
%
% add a colorbar if desired
% use colormap(jet) to see extrem values better
% (Status of: 2019-11-23)
%
% Introduced first in SolidGeometry 2.1
%
% See also: VLplotGraphics, VLplot, VLofVM, colorbar, colormap
%
% h=VLscatter(VL,[C,n,cmap])
% === INPUT PARAMETERS ===
% VL: Vertex list
% C: Intensity List (Hounsfield)
% n: step size for vertex selection
% cmap: optional colormap; such as 'gray'
% === OUTPUT RESULTS ======
% h: handle to plot
%
% EXAMPLE: Scatter a Voxelmodel
% VLscatter(VLofVM(V>1600),V(find(V>1600)),10);
%
% See also: VLplotGraphics, VLplot, VLofVM, colorbar, colormap
%
%
% Copyright 2015-2019 Tim C. Lueth

VLFLofVMmarchcube(V,vs)- returns a surface model by the marching cubes

VLFLofVMmarchcube(V,vs)% VLFLofVMmarchcube(V,vs) - returns a surface model by the marching cubes
% (by Tim Lueth, VLFL-Lib, 2015-JAN-22 as class: VOXELS)
%
% This fnctn uses the MarchingCubes fnctn from Matlab Central written by
% Peter Hammer in 2011 based on the Octave fnctn written by Martin Helm
% (www.mhelm.de/octave/m/marching_cube.m) in 2009. It contains also code
% from Oliver Woodford for removing duplicated vertices. (Status of:
% 2018-08-24)
%
% Introduced first in SolidGeometry 2.1
%
% See also: VLFLofVMdelaunay, TR3ofVM, SGofVMmarchcube, SGofVMdelaunay
%
% [VL,FL]=VLFLofVMmarchcube(V,[vs])
% === INPUT PARAMETERS ===
% V: Logical Volume Model
% vs: voxel size, optional
% === OUTPUT RESULTS ======
% VL: Vertex list
% FL: Facet list
%
% EXAMPLE: Reconstruction of Voxel Models
% [V,vs]=VMreaddicomdir('AIM_DICOMFILES');
% [VL,FL]=VLFLofVMmarchcube((V>400)&(V<1100),vs); VLFLfigure(VL,FL);
% % Understanding the Existance or creation of non manifold edges
% V=zeros(3,3,3); for i=1:numel(V); if isodd(i); V(i)=1; end; end; VLFLofVMmarchcube(V,[],false)
% V=zeros(3,3,3); for i=1:numel(V); if isodd(i); V(i)=1; end; end; VLFLfVMmarchcube(V,[],true)
%
% See also: VLFLofVMdelaunay, TR3ofVM, SGofVMmarchcube, SGofVMdelaunay
%
%
% Copyright 2015-2018 Tim C. Lueth

VLFLofVMdelaunay(V,vs,s)- returns a surface model for a delaunay reconstructed volume model

VLFLofVMdelaunay(V,vs,s)% VLFLofVMdelaunay(V,vs,s) - returns a surface model for a delaunay reconstructed volume model
% (by Tim Lueth, VLFL-Lib, 2015-JAN-20 as class: VOXELS)
%
% See also: VLFLofVMdelaunay, VLFLofVMmarchcube
%
% [VL,FL,TR4]=VLFLofVMdelaunay(V,[vs,s])
% === INPUT PARAMETERS ===
% V: Voxel Model (~=0 is reconstruction)
% vs: voxel size, optional
% s: step size
% === OUTPUT RESULTS ======
% VL: Vertex list
% FL: Facet list
% TR4: Delaunay tetrahedron model
%

TR2ofimage(I,t)- returns a Delaunay triangulation for a grayscale image

TR2ofimage(I,t)% TR2ofimage(I,t) - returns a Delaunay triangulation for a grayscale image
% (by Tim Lueth, VLFL-Lib, 2015-JAN-20 as class: VOXELS)
%
% Type = 0 => triangulation contains all pixels and pixel facets
% Type = 1 => triangulation contains only triangulated boundary facets
%
% WARNING: This procedure contains a real Matlab coding bug: If the two
% lines of procedure TR2reduce are directly inserted in the code, an
% error occurs by the isInterior procedure that is not explainable.
% (Status of: 2015-01-20)
%
% TR2=TR2ofimage(I,[t])
% === INPUT PARAMETERS ===
% I: Image nxm
% t: type of triangulation (default is 1)
% === OUTPUT RESULTS ======
% TR2: delaunay triangulation
%
% EXAMPLE: Analyze dicom images:
% subplot (1,2,1); TR2ofimage (I1>1400,0);
% subplot (1,2,2); TR2ofimage (I1>1400,1);
%

TR3ofVM(V,vs,s)- returns a

TR3ofVM(V,vs,s)% TR3ofVM(V,vs,s) - returns a
% (by Tim Lueth, VLFL-Lib, 2015-JAN-20 as class: VOXELS)
%
% See also: VLFLofVMdelaunay, VLFLofVMmarchcube
%
% [TR4,TR3]=TR3ofVM(V,[vs,s])
% === INPUT PARAMETERS ===
% V:
% vs:
% s:
% === OUTPUT RESULTS ======
% TR4:
% TR3:
%

VM(I)- returns a matrix of reduced size if required (squeeze)

VM(I)% VM(I) - returns a matrix of reduced size if required (squeeze)
% (by Tim Lueth, VLFL-Lib, 2015-JAN-19 as class: VOXELS)
%
% Obsolete fnctn: Better use Matlab fnctn squeeze directly
% This is an auxiliary fnctn to take out a nxnxm submatrix from a nxnxm
% matrix, since Matlab does not treat nxnxm matrice orthogonal to nxm
% matrices. This fnctn is preferable to take out an orthogonal slice or
% subvolume from a voxel model. (Status of: 2017-02-16)
%
% See also: VMimage, VMimrot90, VMmontage, VMplot, VMpseudo3D,
% VMreaddicom, VMreaddicomdir, VMuidicom
%
% I=VM(I)
% === INPUT PARAMETERS ===
% I: Matrix n x n x m
% === OUTPUT RESULTS ======
% I: Matrix n x n x m
%
% EXAMPLE: Different subvolums from a 3D voxel model:
% V=zeros(30,40,50);
% A=VM(V(:,:,2)); whos A
% A=VM(V(:,2,:)); whos A
% A=VM(V(2,:,:)); whos A
% A=VM(V(2:3,:,4:6)); whos A
%

VMreaddicomdir(pathname)- reads a dicom directory into an image stack

VMreaddicomdir(pathname)% VMreaddicomdir(pathname) - reads a dicom directory into an image stack
% (by Tim Lueth, VLFL-Lib, 2015-JAN-14 as class: VOXELS)
%
% This is a new version in SG 4.9 that uses matlab's dicomreadVolume
% introduced in 2017b
% This fnctn is for educational purpose only!
% The use for medical purpose is prohibited!
% For full information on the dicom format read:
% http://medical.nema.org/Dicom/2011/11_03pu.pdf (Status of: 2020-01-13)
%
% Introduced first in SolidGeometry 4.9
%
% See also: VM, VMimage, VMimrot90, VMmontage, VMplot, VMpseudo3D,
% VMreaddicom, VMuidicom
%
% [IM,vs,TAG,zL,sL]=VMreaddicomdir(pathname)
% === INPUT PARAMETERS ===
% pathname: path of dicom directory
% === OUTPUT RESULTS ======
% IM: Image stack
% vs: estimated voxel size
% TAG: ''
% zL: slice location list in [mm]
% sL: pixel size in [mm]
%
% EXAMPLE:
% VMreaddicomdir(); VM=ans; whos VM
%
% See also: VM, VMimage, VMimrot90, VMmontage, VMplot, VMpseudo3D,
% VMreaddicom, VMuidicom
%
%
% Copyright 2015-2020 Tim C. Lueth

VLofVM(VM,vs)- returns the voxel coordinates as point list (can be long)

VLofVM(VM,vs)% VLofVM(VM,vs) - returns the voxel coordinates as point list (can be long)
% (by Tim Lueth, VLFL-Lib, 2015-JAN-14 as class: VOXELS)
%
%
% VL=VLofVM(V>0.5); returns all voxel coordinates of V(:,:,:)>0.5
% I=V(V>0.5); contains all voxel intensities for the VL
% VL=VLofVM(V>0.5,[0.4 0.4 1]) returns all cartesian coordinates using vs
% (Status of: 2018-08-24)
%
% Introduced first in SolidGeometry 2.1
%
% See also: VLplot, VLscatter, VLofimage, VMofVL
%
% VL=VLofVM(VM,[vs])
% === INPUT PARAMETERS ===
% VM: Voxel model (mxmxn) or image stack
% vs: optional voxel size
% === OUTPUT RESULTS ======
% VL: Vertex list
%
% EXAMPLE: VL=VLofVM(V(:,:,64)>1400); VLplot(VL,'m.')
% [VL,EL,FL]=VLofimage(:,:,64)>1200, 1 , 2);
%
% [VL,C]=VLofVM(V(:,:,1:10)>1400); C=V(V(:,:,1:10)>1400);
%
% See also: VLplot, VLscatter, VLofimage, VMofVL
%
%
% Copyright 2015-2018 Tim C. Lueth

VMimage (IM,p)- returns three crosssectional views of an image stack (voxel model)

VMimage (IM,p)% VMimage (IM,p) - returns three crosssectional views of an image stack (voxel model)
% (by Tim Lueth, NAV-Lib, 2015-JAN-14 as class: VISUALIZATION)
%
% By default the center of the image is used to create the three
% crosssectional views. (Status of: 2017-04-15)
%
% Introduced first in SolidGeometry 2.1
%
% See also: VM, VMimrot90, VMmontage, VMplot, VMpseudo3D, VMreaddicom,
% VMreaddicomdir, VMuidicom
%
% VMimage(IM,[p])
% === INPUT PARAMETERS ===
% IM: 3D Matrix
% p: optional point of interest (row, column, slice)
%
% See also: VM, VMimrot90, VMmontage, VMplot, VMpseudo3D, VMreaddicom,
% VMreaddicomdir, VMuidicom
%
%
% Copyright 2015-2017 Tim C. Lueth

VMimrot90(I)- returns an 90 degree rotated image (nxm) or image stack (nxmxk)

VMimrot90(I)% VMimrot90(I) - returns an 90 degree rotated image (nxm) or image stack (nxmxk)
% (by Tim Lueth, VLFL-Lib, 2015-JAN-13 as class: VOXELS)
%
% +90 degree: fliplr(I')
% 180 degree: flipud(I)
% -90 degree: flipud(I') (Status of: 2017-02-16)
%
% See also: VM, VMimage, VMmontage, VMplot, VMpseudo3D, VMreaddicom,
% VMreaddicomdir, VMuidicom
%
% NI=VMimrot90(I)
% === INPUT PARAMETERS ===
% I: image or image stack
% === OUTPUT RESULTS ======
% NI: new image or image stack
%

SGintersectFacetPoints(A,B)- calculates a list of crossing facet pairs and crossing points of 2 solids

SGintersectFacetPoints(A,B)% SGintersectFacetPoints(A,B) - calculates a list of crossing facet pairs and crossing points of 2 solids
% (by Tim Lueth, VLFL-Lib, 2015-JAN-12 as class: SURFACES)
%
% This fnctn is now (2017-Aug) 5 times faster than the fastest
% MatlabCentral implementation mesh2mesh. Therefor fnctn VLcrossingSG
% should be based on SGintersectFacetPoints in future for collision
% checks.
% This fnctn is an elementary part of SGbool1-SGbool3 and was isolated
% and improved for SGbool4 in 2017-07-31.
% The 6th row is may be obsolete, since it is not used in
% VLFLinsertFacetPoints
% The resulting format of NPL is:
% col 01: facet of A
% col 02: facet of B
% col 03-05: crossing point
% col 06: intersection information
% col 06: sign is inside/out 1..3 is
% col 06: value ==> 1..3 wrt 1st facet egde; 0.1..0.3 wrt 2nd face edge
% col 07: k (percentage) between start and end point of edge
% (Status of: 2018-08-20)
%
% Introduced first in SolidGeometry 2.1
%
% See also: crossingfacets2VLFL, cross2F, intersectstriangle,
% VLFLinsertFacetPoints
%
% NPL=SGintersectFacetPoints(A,B)
% === INPUT PARAMETERS ===
% A: Solid A
% B: Solid B
% === OUTPUT RESULTS ======
% NPL: New point list
%
% EXAMPLE:
% A=SGbox([30,20,10]); B=SGtransP(A,[1 2 3]);
% SGintersectFacetPoints(A,B)
%
%
% See also: crossingfacets2VLFL, cross2F, intersectstriangle,
% VLFLinsertFacetPoints
%
%
% Copyright 2015-2018 Tim C. Lueth

VLFLinsertFacetPoints(VLA,FLA,NPL)- This function retesselates all surfaces of a solid by inserting points into existing facets

VLFLinsertFacetPoints(VLA,FLA,NPL)% VLFLinsertFacetPoints(VLA,FLA,NPL) - This fnctn retesselates all surfaces of a solid by inserting points into existing facets
% (by Tim Lueth, VLFL-Lib, 2015-JAN-12 as class: SURFACES)
%
% This fnctn is an elementary part of SGbool1-SGbool3 and was isolated
% for SGbool4 in 2017-08-02
% It is not enough just to add the points to a triangle but also it is
% necessary to add edges inside of the facet for each cutting edge!
% Otherwise it is not possible to reconnect the two separated handled
% Solids!
% The final result are THREE retesselate facet list: NFL and SFL and UFL
% The orientation of the faces of SFL are changed. (Status of: 2017-08-06)
%
% Introduced first in SolidGeometry 2.1
%
% See also: SGintersectFacetPoints, crossingfacets2VLFL, cross2F,
% intersectstriangle
%
% [XVL,XFIL,NFL,SFL,UFL]=VLFLinsertFacetPoints(VLA,FLA,NPL)
% === INPUT PARAMETERS ===
% VLA: Solid A
% FLA: Solid B
% NPL: New Point List created by SGintersectFacetPoints
% === OUTPUT RESULTS ======
% XVL: Original point list plus additional points
% XFIL: Facet index list of original facets that were changed
% NFL: Facets that belong completely to crossing points (red)
% SFL: Facets that connect untouched points and crossing points (yellow)
% UFL: Facets that are not touched (green)
%
% EXAMPLE:
% A=SGbox([30,20,10]); B=SGtransP(A,[1 2 3]);
% SGintersectFacetPoints(A,B); NPL=ans
% A=SGbox([30,20,10]); B=SGofCPLz([PLcircle(4);NaN
% NaN;PLcircle(2)],10);SGintersectFacetPoints(A,B); NPL=ans
% VLFLinsertFacetPoints(A.VL,A.FL,NPL)
% VLFLinsertFacetPoints(B.VL,B.FL,NPL(:,[2 1 3:end]))
%
% See also: SGintersectFacetPoints, crossingfacets2VLFL, cross2F,
% intersectstriangle
%
%
% Copyright 2015-2017 Tim C. Lueth

cartofvox(vs,vox)- returns cartesian coordinates from voxel coordinates

cartofvox(vs,vox)% cartofvox(vs,vox) - returns cartesian coordinates from voxel coordinates
% (by Tim Lueth, VLFL-Lib, 2015-JAN-12 as class: VOXELS)
%
% Introduced first in SolidGeometry 2.1
%
% See also: voxofcart
%
% p=cartofvox(vs,vox)
% === INPUT PARAMETERS ===
% vs: voxel size [bx by bz]
% vox: voxel coordinate vector
% === OUTPUT RESULTS ======
% p: cartesian coordinate vector
%
% EXAMPLE:
% cartofvox([0.2 0.2 1],[2 2 1])
% voxofcart([1 1 1],[2.4 2.4 1])
%
%
% See also: voxofcart
%
%
% Copyright 2015-2021 Tim C. Lueth

voxofcart(vs,p)- returns voxel coordinates from cartesian coordinates

voxofcart(vs,p)% voxofcart(vs,p) - returns voxel coordinates from cartesian coordinates
% (by Tim Lueth, VLFL-Lib, 2015-JAN-12 as class: VOXELS)
%
% Introduced first in SolidGeometry 2.1
%
% See also: cartofvox
%
% vox=voxofcart(vs,p)
% === INPUT PARAMETERS ===
% vs: voxel size [bx by bz]
% p: cartesian coordinate vector
% === OUTPUT RESULTS ======
% vox: voxel coordinate vector
%
% EXAMPLE:
% voxofcart([1 1 1],[2.4 2.4 1])
% cartofvox([0.2 0.2 1],[2 2 1])
%
%
% See also: cartofvox
%
%
% Copyright 2015-2021 Tim C. Lueth

exp_2015_01_10c (bo)-

exp_2015_01_10c (bo)% exp_2015_01_10c (bo) -
% (by Tim Lueth, VLFL-Lib, 2015-JAN-11 as class: EXPERIMENTS)
%
% exp_2015_01_10c([bo])
% === INPUT PARAMETERS ===
% bo:
%

SGbool3(flag,A,B)- returns the result of a boolean operation on two solids

SGbool3(flag,A,B)% SGbool3(flag,A,B) - returns the result of a boolean operation on two
% solids
% (by Tim Lueth, VLFL-Lib, 2015-JAN-11 as class: SURFACES)
%
% First version that works completely correct. Next step is
% retesselation. IgtG
% A= A without B
% B= B without A
% += A combined with B
% x= A intersected with B
% There is one problem with concave surfaces (Status of: 2015-01-11)
%
% SGX=SGbool3(flag,A,B)
% === INPUT PARAMETERS ===
% flag: Boolean operator ('AB+x')
% A: Solid A (VL/FL)
% B: Solid B (VL/FL)
% === OUTPUT RESULTS ======
% SGX: resulting surface geometry
%

exp_2015_01_11 (SGA,bo)- EXPRIMENT TO drill through STL-FIles using SGbool

exp_2015_01_11 (SGA,bo)% exp_2015_01_11 (SGA,bo) - EXPRIMENT TO drill through STL-FIles using SGbool
% (by Tim Lueth, VLFL-Lib, 2015-JAN-11 as class: EXPERIMENTS)
%
% exp_2015_01_11(SGA,[bo])
% === INPUT PARAMETERS ===
% SGA: Solid Geoemtry
% bo:
%

FLorder(FL)- returns a shifted and ordered facet list

FLorder(FL)% FLorder(FL) - returns a shifted and ordered facet list
% (by Tim Lueth, VLFL-Lib, 2015-JAN-11 as class: AUXILIARY PROCEDURES)
%
% The facet list is rotated line by line so that the smallest vertex
% index is in the left column.
%
% In contrast to FLshift, by using FLorder the facet list is sorted by
% increasing numbers of column sortrows(FL,[1 2 3]). (Status of:
% 2017-02-21)
%
% See also: ELorder, FLseparate, TRorder, SGorder, SGseparate
%
% FL=FLorder(FL)
% === INPUT PARAMETERS ===
% FL: Original facet list
% === OUTPUT RESULTS ======
% FL: Final facet list
%
% EXAMPLE:
% FL=[10 20 30; 30 10 20; 20 30 10]
% FL=[FL*1.5;FL]
% FLorder(FL)
%

exp_2015_01_11 (SGA,bo)- EXPERIMENT that shows the power of SGboo3

exp_2015_01_11 (SGA,bo)% exp_2015_01_11 (SGA,bo) - EXPERIMENT that shows the power of SGboo3
% (by Tim Lueth, VLFL-Lib, 2015-JAN-11 as class: EXPERIMENTS)
%
% exp_2015_01_11(SGA,[bo])
% === INPUT PARAMETERS ===
% SGA: Solid Geometry
% bo: boolean operator
%

exp_2015_01_10 (bo)- EXPERIMENT to the first usable function SGbool

exp_2015_01_10 (bo)% exp_2015_01_10 (bo) - EXPERIMENT to the first usable fnctn SGbool
% (by Tim Lueth, VLFL-Lib, 2015-JAN-10 as class: EXPERIMENTS)
%
% exp_2015_01_10([bo])
% === INPUT PARAMETERS ===
% bo: flag; default is x (intersection)
%

exp_2015_01_08m- EXPERIMENT that tesselates a solid as preparation for cutting

exp_2015_01_08m% exp_2015_01_08m - EXPERIMENT that tesselates a solid as preparation for
% cutting
% (by Tim Lueth, VLFL-Lib, 2015-JAN-10 as class: SURFACES)
%
% NPL=exp_2015_01_08m
% === OUTPUT RESULTS ======
% NPL:
%

exp_2015_01_08i- EXPERIMENT that tesselates a solid as preparation for cutting

exp_2015_01_08i% exp_2015_01_08i - EXPERIMENT that tesselates a solid as preparation for
% cutting
% (by Tim Lueth, VLFL-Lib, 2015-JAN-10 as class: SURFACES)
%
% exp_2015_01_08i
%

SGisInterior(SG,VL)- returns the isInside Flag for a SG and a VL

SGisInterior(SG,VL)% SGisInterior(SG,VL) - returns the isInside Flag for a SG and a VL
% (by MATLAB-CENTRAL, VLFL-Lib, 2015-JAN-10 as class: SURFACES)
%
% Fast checking fnctn for points that are not on the surface. Surface
% points belong to the inner points.
% Bugs appear if points are at the same position but different z axis.
% Could easily be solved.
% This fnctn still has some bugs with vertices on the surface of the
% solid. See mesh2mesh to learn how to improve VLFLinpolyhedron. (Status
% of: 2020-01-11)
%
% See also: VLisInteriorofBB, mesh2mesh, VLFLinpolyhedron, BBiscollofVL,
% outboundingbox, VLcrossingSG, crossingfacets2VLFL, SGisconvex
%
% [VIL,Vin,Von]=SGisInterior(SG,VL)
% === INPUT PARAMETERS ===
% SG: Solid Geoemtry
% VL: Vertex list to test
% === OUTPUT RESULTS ======
% VIL: Vertex index list
% Vin:
% Von:
%
% EXAMPLE:
% SGbool('-',SGbox([30,20,10]),SGbox([26,16,6])); A=ans;
% SGsphere(10); B=ans;
% SGisInterior(A,[A.VL;B.VL]);
%
%
% See also: VLisInteriorofBB, mesh2mesh, VLFLinpolyhedron, BBiscollofVL,
% outboundingbox, VLcrossingSG, crossingfacets2VLFL, SGisconvex
%

VLFLfaceNormal(VL,FL,fi,th)- returns the normal vector (or NAN) of the facet list and cutted (1e-4) length

VLFLfaceNormal(VL,FL,fi,th)% VLFLfaceNormal(VL,FL,fi,th) - returns the normal vector (or NAN) of the facet list and cutted (1e-4) length
% (by Tim Lueth, VLFL-Lib, 2015-JAN-09 as class: ANALYTICAL GEOMETRY)
%
% This is a fnctn to adapt the VLFL syntax to R2014b.
% The matlab cross-fnctn of triangualtion results returns calucation
% error in size (1e-4)
% returns NAN for points a line or very small tritangels (Status of:
% 2018-08-20)
%
% Introduced first in SolidGeometry 2.1
%
% See also: VLFLvertexNormal, PLnorm, PLELnorm, PLFLfaceNormal, VLnorm,
% VLFLnormf, VLedgeNormal, VLFLfaceAngles
%
% [NL,AL]=VLFLfaceNormal(VL,FL,[fi,th])
% === INPUT PARAMETERS ===
% VL: Vertex list n x 3
% FL: Facet list
% fi: optional value; facet index (list)
% th:
% === OUTPUT RESULTS ======
% NL: Normal vector list
% AL: Area list;
%
% EXAMPLE:
% [VL,FL]=PLFLofCPLdelaunay(PLcircle(1)); VL=VLaddz(VL);
% VLFLfaceNormal(VL,FL)
%
% See also: VLFLvertexNormal, PLnorm, PLELnorm, PLFLfaceNormal, VLnorm,
% VLFLnormf, VLedgeNormal, VLFLfaceAngles
%
%
% Copyright 2015-2021 Tim C. Lueth

exp_2015_01_08b- EXPERIMENT SCRIPT for testing crossingfacets2VLFL

exp_2015_01_08b% exp_2015_01_08b - EXPERIMENT SCRIPT for testing crossingfacets2VLFL
% (by Tim Lueth, VLFL-Lib, 2015-JAN-08 as class: EXPERIMENTS)
%
% exp_2015_01_08b
%

SGcut(SG,z)- Cuts a solid geometry into 2 parts at a defined z-plane

SGcut(SG,z)% SGcut(SG,z) - Cuts a solid geometry into 2 parts at a defined z-plane
% (by Tim Lueth, VLFL-Lib, 2015-JAN-08 as class: SURFACES)
%
% returns two solid solids (VL,FL). It is a good programming example how
% to use SGslicer.
% Without output parameter is shows the cutted parts using VLFLfigure
% Since REl 4.9 it allows parameters as z similar to SGcutend
% (Status of: 2018-11-06)
%
% Introduced first in SolidGeometry 2.1
%
% See also: SGcut, SGcut2, SGcutBB, BBofSGcutT, SGcutend
%
% [SGA,SGB]=SGcut(SG,[z])
% === INPUT PARAMETERS ===
% SG: Solid Geometry (VL,FL)
% z: z value for slicing or interval [z1 z2] or character such as 'x',
% 'y', 'z'
% === OUTPUT RESULTS ======
% SGA: Solid below cutting plane (and above z2) (grey)
% SGB: Solid above cutting plane (and in between z2) (magenta)
%
% EXAMPLE:
% SGcut (SGsample(7),+10);
% SGcut(SGsample(4));
% SGcut(SGsample(25));
% SGcut(SGsample(25),'x+');
% SGcut(SGsample(25),'x-');
%
% See also: SGcut, SGcut2, SGcutBB, BBofSGcutT, SGcutend
%
%
% Copyright 2015-2020 Tim C. Lueth

exp_2015_01_08- EXPERIMENT SCRIPT for testing SGcut

exp_2015_01_08% exp_2015_01_08 - EXPERIMENT SCRIPT for testing SGcut
% (by Tim Lueth, VLFL-Lib, 2015-JAN-08 as class: EXPERIMENTS)
%
% exp_2015_01_08
%

SGslicer(SG,z)- returns the delaunayTriangulation of the sliced plane

SGslicer(SG,z)% SGslicer(SG,z) - returns the delaunayTriangulation of the sliced plane
% (by Tim Lueth, VLFL-Lib, 2015-JAN-07 as class: SLICES)
%
% Efficient, modern and powerful version of VLELslicer/VLELslicer2 that
% uses delaunayTriangulation for reconstruction and calulation of upper
% and lower cutted facets in addition.
% Without output parameters, the result is shown in VLFLfigure
% Modified in June 2015 to support already cutted objects (lines in the
% cutting plane). There is still no possibility to cut parts at the outer
% boundaries (surfaces) of the object. (Status of: 2018-08-22)
%
% Introduced first in SolidGeometry 2.1
%
% See also: VLFLofrangez, FILofrangez, VLELslicer, VLELslicer2
%
% [TR2,EL,SIL,FIL,FLO,FLU,warn]=SGslicer(SG,z)
% === INPUT PARAMETERS ===
% SG: Solid Geometry (VL,FL)
% z: z value for slicing
% === OUTPUT RESULTS ======
% TR2: Delaunay Triangulation of the cutting plane
% EL: Border Edge List of TR2 (TR2.Constraints)
% SIL: Surface Index List (Index of separated surface areas)
% FIL: Facet index list of the cutted facets -1=below, +1= up, 0=cutted
% FLO: Facet list upper related to [SG.VL; TR2.Points]
% FLU: Facet list lower related to [SG.VL; TR2.Points]
% warn:
%
% EXAMPLE: SGslicer (SGsample(7),+10);
%
% See also: VLFLofrangez, FILofrangez, VLELslicer, VLELslicer2
%
%
% Copyright 2015-2018 Tim C. Lueth

exp_2015_01_07b- EXPERIMENT SCRIPT for testing SGslicer

exp_2015_01_07b% exp_2015_01_07b - EXPERIMENT SCRIPT for testing SGslicer
% (by Tim Lueth, VLFL-Lib, 2015-JAN-07 as class: EXPERIMENTS)
%
% exp_2015_01_07b
%

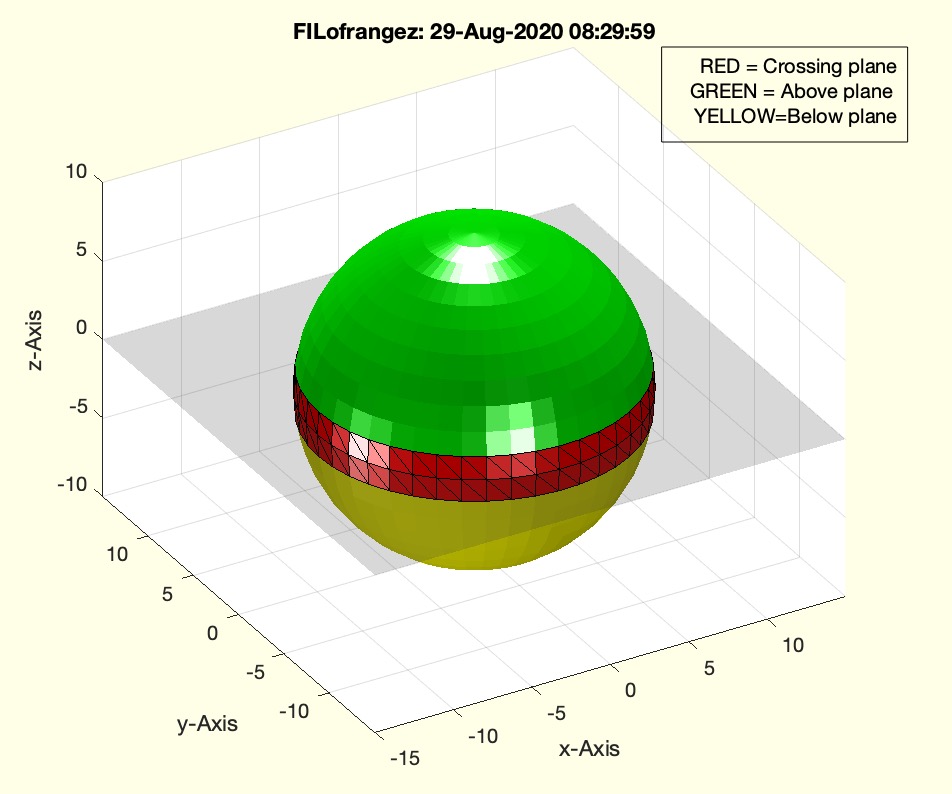

FILofrangez(VL,FL,z1,z2)- returns an facet index list for facets crossing a plane

FILofrangez(VL,FL,z1,z2)% FILofrangez(VL,FL,z1,z2) - returns an facet index list for facets crossing a plane
% (by Tim Lueth, VLFL-Lib, 2015-JAN-07 as class: SLICES)
%
% Very fast fnctn for slicer tasks to select facets that cross a z-plane
% Similar to VLFLofrangez but FILofrangez is about 10 times faster than
% VLFLofrangez (Status of: 2018-08-22)
%
% Introduced first in SolidGeometry 2.1
%
% See also: VLFLofrangez, SGslicer
%
% FIL=FILofrangez(VL,FL,[z1,z2])
% === INPUT PARAMETERS ===
% VL: Vertex list
% FL: Facet list
% z1: z-plane for crossing
% z2: upper z-plane for crossing; default is z1
% === OUTPUT RESULTS ======
% FIL: +1 = above plane, -1 under plane, 0=crosses plane
%
% EXAMPLE: SG=SGsphere(10); FILofrangez (SG.VL,SG.FL,0);
% VLFLfigure; view(-30,30);
% FIL=FILofrangez (SG.VL,SG.FL,7);
% FIL
% VLFLplot(SG.VL,SG.FL(FIL<0,:),'w')
% VLFLplot(SG.VL,SG.FL(FIL==0,:),'r')
% VLFLplot(SG.VL,SG.FL(FIL>0,:),'b')
%
% See also: VLFLofrangez, SGslicer
%
%
% Copyright 2015-2018 Tim C. Lueth

PLELhsort(PL,EL,SIL)- returns a hierarchy index list for a PL,EL,SIL

PLELhsort(PL,EL,SIL)% PLELhsort(PL,EL,SIL) - returns a hierarchy index list for a PL,EL,SIL
% (by Tim Lueth, VLFL-Lib, 2015-JAN-05 as class: SLICES)
%
% PL,EL, and SIL are unchanged. The hierarchy index list contains the
% index of the enclosing contour
% With PLELhsort it is possible to find the outside contours of a slice
% (0), which is sometimes better than a freeBoundary
% (Status of: 2015-01-05)
%
% HIL=PLELhsort(PL,EL,SIL)
% === INPUT PARAMETERS ===
% PL: Point List
% EL: Edge List
% SIL: Surface Index List
% === OUTPUT RESULTS ======
% HIL: hierarchy index list
%

exp_2015_01_05 (n,dz)- EXPERIMENT for hierarchical ordering of VLEL

exp_2015_01_05 (n,dz)% exp_2015_01_05 (n,dz) - EXPERIMENT for hierarchical ordering of VLEL
% (by Tim Lueth, VLFL-Lib, 2015-JAN-05 as class: EXPERIMENTS)
%
% Testing procedure for SGslicer and ELofFLborder2 and PLELhsort
% 1. Slicing using SGslicer
% 2. Connect the border edges of the Triagulation using ELofFLborder2
% 3. Calculate the Hierarchy index
% 4. Use only the outer contours (Status of: 2015-01-05)
%
% exp_2015_01_05([n,dz])
% === INPUT PARAMETERS ===
% n: SGsample(positive); CPLsample(negative) or SG
% dz: slicing step (positive) slice value (negative)
%

colofn(i,colbar,colstr)- returns a color char for a number 0..7

colofn(i,colbar,colstr)% colofn(i,colbar,colstr) - returns a color char for a number 0..7
% (by Tim Lueth, VLFL-Lib, 2015-JAN-05 as class: AUXILIARY PROCEDURES)
%
% =======================================================================
% OBSOLETE (2022-01-29) - USE 'nofcolmap' INSTEAD
% =======================================================================
%
% simple auxiliary fnctn for color use in for loops
% for having a larger collection of colors use 'nofcolmap' (Status of:
% 2022-01-29)
%
% Introduced first in SolidGeometry 2.1
%
% See also: [ nofcolmap ] ; SGshowcolors, nofcolmap, color, VLcol,
% colofPose
%
% c=colofn(i,[colbar,colstr])
% === INPUT PARAMETERS ===
% i: integer number
% colbar: order of colors; default is 'kbgcmyrw'
% colstr: colorstring such as 'R*--'
% === OUTPUT RESULTS ======
% c: color char string
%
% EXAMPLE:
% colofn(4)
% colofn(4,'kymg')
% colofn(4,'kymg','r--')
% colofn(4,'kymg','--')
%
% See also: [ nofcolmap ] ; SGshowcolors, nofcolmap, color, VLcol,
% colofPose
%
%
% Copyright 2015-2022 Tim C. Lueth

ELofFLborder2(FL)- returns the border edges of a surface

ELofFLborder2(FL)% ELofFLborder2(FL) - returns the border edges of a surface
% (by Tim Lueth, VLFL-Lib, 2015-JAN-05 as class: SLICES)
%
% First the surface is separated into areas that have no common edges
% (ELorder). Then for each area, the edges with only one direction are
% the border edges.
% Should replace ELofFLborder one day. (Status of: 2022-01-13)
%
% Introduced first in SolidGeometry 2.1
%
% See also: VLFLfreeboundary, ELboundaryFL, ELofFLborder
%
% [EL,SIL]=ELofFLborder2(FL)
% === INPUT PARAMETERS ===
% FL: Facet list
% === OUTPUT RESULTS ======
% EL: Edge list
% SIL: Surface index list
%
% See also: VLFLfreeboundary, ELboundaryFL, ELofFLborder
%
%
% Copyright 2015-2022 Tim C. Lueth

exp_2015_01_04b (SG,dz)- EXPERIMENT that shows the use of SGslicer and freeboundary

exp_2015_01_04b (SG,dz)% exp_2015_01_04b (SG,dz) - EXPERIMENT that shows the use of SGslicer and
% freeboundary
% (by Tim Lueth, VLFL-Lib, 2015-JAN-04 as class: EXPERIMENTS)
%
% Towards a reimplementation of VLFLclosure - here we see the sliced
% freeboundary
% If the procedure is interrupted by Ctrl-C you see the inner part of the
% sliced solid (Status of: 2015-01-04)
%
% exp_2015_01_04b(SG,[dz])
% === INPUT PARAMETERS ===
% SG: Solid Geometry (VL,FL)
% dz: slicing distance
%

exp_2015_01_04 (SG,dz)- EXPERIMENT that shows the use of SGslicer and freeboundary

exp_2015_01_04 (SG,dz)% exp_2015_01_04 (SG,dz) - EXPERIMENT that shows the use of SGslicer and
% freeboundary
% (by Tim Lueth, VLFL-Lib, 2015-JAN-04 as class: EXPERIMENTS)
%
% Towards a reimplementation of VLFLclosure
% If the procedure is interrupted by Ctrl-C you see the inner part of the
% sliced solid (Status of: 2015-01-04)
%
% exp_2015_01_04(SG,[dz])
% === INPUT PARAMETERS ===
% SG: Solid Geometry (VL,FL)
% dz: slicing distance
%

SGslicer(SG,z)- returns the delaunayTriangulation of the sliced plane

SGslicer(SG,z)% SGslicer(SG,z) - returns the delaunayTriangulation of the sliced plane
% (by Tim Lueth, VLFL-Lib, 2015-JAN-04 as class: SLICES)
%
% More modern version of VLELslicer/VLELslicer2 that uses
% delaunayTriangulation for reconstruction.
% Without an output parameter, the result is shown y VLFLfigure (Status
% of: 2018-08-22)
%
% Introduced first in SolidGeometry 2.1
%
% See also: VLFLofrangez, FILofrangez
%
% [TR2,EL,SIL,FIL,FLO,FLU]=SGslicer(SG,z)
% === INPUT PARAMETERS ===
% SG: Solid Geometry (VL,FL)
% z: z value for slicing
% === OUTPUT RESULTS ======
% TR2: Crossing vertex list of the selected slice
% EL: Crossing line list of the selected slice
% SIL: Normal vector list of the crossing lines
% FIL:
% FLO:
% FLU:
%
% EXAMPLE: Generate a simple octagon (5x5x20)
% [VL,FL]=VLFLcylinder(20,5/cos(pi/8),8-1,1);
% [CVL,CLL,NL]=VLELslicer (VL,FL,0)
% VLELplot (CVL,CLL,'r*-',NL);
%
% See also: VLFLofrangez, FILofrangez
%
%
% Copyright 2015-2018 Tim C. Lueth

SGseparate(SG,i,i)- plots or returns sorted surfaces or one surface of a solid geometry

SGseparate(SG,i,i)% SGseparate(SG,i,i) - plots or returns sorted surfaces or one surface of a solid geometry
% (by Tim Lueth, VLFL-Lib, 2015-JAN-04 as class: SURFACES)
%
% SGseparate is a newer (faster and more convinient) version of
% VLFLseparate
% Based on ELorder and VLELselect.
% With only one surface is asked, surface is moved into 1st. Quadrant
% With no output parmeter, the surface(s) are plotted using VLFLfigure
% With no SG specified, VLFLui is used to read in an STL-File
% 2017-06-14: i can be index or index list
% 2018-08-24: Have in mind that SGshort can change the solid list
% 2021-07-27: See als VLFLregions (Status of: 2021-07-27)
%
% Introduced first in SolidGeometry 2.1
%
% See also: SGsurfaces, SGanalyzeGroupParts, SGanalyzePenetration,
% VLFLregions, SGorder, TRorder
%
% [SG,SIL,n,BBi]=SGseparate([SG,i,i])
% === INPUT PARAMETERS ===
% SG: Solid Geometry; if empty
% i: index list of single/selected surface
% i:
% === OUTPUT RESULTS ======
% SG: Solid Geoemtry
% SIL: Surface Index List
% n: number of closed surfaces
% BBi: Cell list of Bounding Boxes of the Solids
%
% EXAMPLE: loadweb JACO_robot.mat;
% SGseparate(J1,[1,2,4])
% SGseparate(JC3)
% SGseparate(SGshort(JC3))
%
% See also: SGsurfaces, SGanalyzeGroupParts, SGanalyzePenetration,
% VLFLregions, SGorder, TRorder
%
%
% Copyright 2015-2021 Tim C. Lueth

exp_2015_01_03b(n,a)- Experiment to improve TRofSG

exp_2015_01_03b(n,a)% exp_2015_01_03b(n,a) - Experiment to improve TRofSG
% (by Tim Lueth, VLFL-Lib, 2015-JAN-03 as class: EXPERIMENTS)
%
% [ELFL,SIL,nv]=exp_2015_01_03b([n,a])
% === INPUT PARAMETERS ===
% n: n in sGsample(positive) or CPLsample (negative)
% a: index or normal vector
% === OUTPUT RESULTS ======
% ELFL:
% SIL:
% nv:
%

exp_2015_01_03(n)- EXPERIMENT to remove the bug from PLELofFeatureEdges2 in FLfeatureEdgeSurface

exp_2015_01_03(n)% exp_2015_01_03(n) - EXPERIMENT to remove the bug from
% PLELofFeatureEdges2
% (by Tim Lueth, VLFL-Lib, 2015-JAN-03 as class: EXPERIMENTS)
%
% The BUG existing in Matlab is that
% faceNormal NNED TO BE ROUNDED WITH 1e-6.
% Afterwards the procedure works well. (Status of: 2015-01-03)
%
% ELFL=exp_2015_01_03([n])
% === INPUT PARAMETERS ===
% n:
% === OUTPUT RESULTS ======
% ELFL:
%

TR3ofSG(SG)- returns the triangulation for a solid gemeotry

TR3ofSG(SG)% TR3ofSG(SG) - returns the triangulation for a solid gemeotry
% (by Tim Lueth, VLFL-Lib, 2015-JAN-03 as class: SURFACES)
%
% single line macro: simple auxiliary procedure (Status of: 2015-01-03)
%
% TR=TR3ofSG(SG)
% === INPUT PARAMETERS ===
% SG: SG.VL, SG.FL
% === OUTPUT RESULTS ======
% TR: Triangulation nx3
%

FEplot(A,)- plots the featureEdges of TR, SG or VLFL

FEplot(A,)% FEplot(A,) - plots the featureEdges of TR, SG or VLFL
% (by Tim Lueth, VLFL-Lib, 2015-JAN-03 as class: VISUALIZATION)
%
% FEplot(SG)
% FEplot(VL,FL)
% default angle is 1e-3 (Status of: 2017-04-05)
%
% Introduced first in SolidGeometry 2.1
%
% See also: FSplot, FLfeatureEdgeSurface2, PLELofFeatureEdges,
% PLELofFeatureEdges2, TRfeatureEdgeFacets, FLfeatureEdgeSurface
%
% FEplot(A,[])
% === INPUT PARAMETERS ===
% A: surface (Tetrahedron, Triangulation, Solid)
%
% EXAMPLE: FEplot(SGsample(3))
%
% See also: FSplot, FLfeatureEdgeSurface2, PLELofFeatureEdges,
% PLELofFeatureEdges2, TRfeatureEdgeFacets, FLfeatureEdgeSurface
%
%
% Copyright 2015-2017 Tim C. Lueth

PLradialEdges(PL,R,cvk,wmin,wmax,KL,m)- returns a point list (PL) with rounded edges

PLradialEdges(PL,R,cvk,wmin,wmax,KL,m)% PLradialEdges(PL,R,cvk,wmin,wmax,KL,m) - returns a point list (PL) with rounded edges
% (by Tim Lueth, VLFL-Lib, 2015-JAN-02 as class: ANALYZING PROCEDURES)
%
% PLradialEdges IS INDEPENDENT AND NOT USING PLtangentcirc!
%
% Replaces all/convex/concave edges with an angle in a defined intervall
% [0,180] by a radial curve. The number of curve points can be specified
% too (default is nofrd). The fnctns accepts a single CPL (without NaN)
% or PL and returns always a PL! (Status of: 2018-08-05)
%
% Introduced first in SolidGeometry 2.1
%
% See also: VLradialEdges, VLtangentcirc, PLtangentcirc, VLradialEdges2T
%
% NPL=PLradialEdges(PL,[R,cvk,wmin,wmax,KL,m])
% === INPUT PARAMETERS ===
% PL: Point list nx2
% R: Radius; default is 1
% cvk: 0==all; -1=concave, +1=convex
% wmin: minimal abs angle to handle; default is 0
% wmax: maximum abs angle to handle; default is pi
% KL: nr of sections of a line; 2 are required for radius at 90degree;
%
% m: number of points; default is nofrd
% === OUTPUT RESULTS ======
% NPL: New point list
%
% EXAMPLE: VLFLfigure;
% C=CPLsample(1);
% CPLplot(C,'m'); CPLplot(PLradialEdges(C,1));
% PLradialEdges(PLstar(50,10),5);
%
% See also: VLradialEdges, VLtangentcirc, PLtangentcirc, VLradialEdges2T
%
%
% Copyright 2015-2020 Tim C. Lueth

PLangle(PL)- returns the angles of a points list

PLangle(PL)% PLangle(PL) - returns the angles of a points list
% (by Tim Lueth, VLFL-Lib, 2015-JAN-02 as class: ANALYZING PROCEDURES)
%
% In contrast to VLangle, PLangle uses crossz to calculate an
% orientation: Positive values are mathematical positive (right hand).
% 2018-08-11: error is corrected for angle ±pi instead of zero (Status
% of: 2018-08-11)
%
% Introduced first in SolidGeometry 2.1
%
% See also: VLangle, diffangle, PLangle2
%
% [w,d]=PLangle(PL)
% === INPUT PARAMETERS ===
% PL: vector list
% === OUTPUT RESULTS ======
% w: angle list
% d: distance list
%
% EXAMPLE:
% [PLstar(10,10) PLangle(PLstar(10,10))/pi*180]
%
% See also: VLangle, diffangle, PLangle2
%
%
% Copyright 2015-2018 Tim C. Lueth

exp_2015_01_02 (nr)- EXPERIMENT to show the use of FLfeatureEdgeSurface

exp_2015_01_02 (nr)% exp_2015_01_02 (nr) - EXPERIMENT to show the use of FLfeatureEdgeSurface
% (by Tim Lueth, VLFL-Lib, 2015-JAN-02 as class: EXPERIMENTS)
%
% Simple experiment to test the procedure FLfeatureEdgeSurface, similar
% to 2014_12_31 (Status of: 2015-01-02)
%
% exp_2015_01_02([nr])
% === INPUT PARAMETERS ===
% nr: Nr of SGsample (positive value) or CPLsample (negative value)
%
% EXAMPLE: exp_2015_01_02 (-7)
%

TRofSGxor(SG,TR4)- removes tetrahedrons to create features edges which are existing in a surface

TRofSGxor(SG,TR4)% TRofSGxor(SG,TR4) - removes tetrahedrons to create features edges which
% are existing in a surface
% (by Tim Lueth, VLFL-Lib, 2015-JAN-02 as class: TETRAHEDRONS)
%
% This procedure calculates the freeBoundary of the points of a surface
% model and compares the featureEdges of the freeBoundary with the
% original featureEdges of a solid. All tetrahedrons are removed linked
% to featureEdges that exist in the original surface but not in the
% tetrahedron model.
% An optional input argument is a preprocessed tetrahedron triangulation.
% This procedure is used by TRofSG. In combination with TRofSGdiff
% (removement of outside tetrahedons), TRofSGxor (removement of outside
% tetrahedons) will create a tetrahedron triangulation for one single
% surface triangulation. This procedure works for only ONE closed surface.
% (Status of: 2015-01-02)
%
% TR4=TRofSGxor(SG,[TR4])
% === INPUT PARAMETERS ===
% SG: Solid geometry (SG.VL,SG>FL)
% TR4: tetrahedron triangulation
% === OUTPUT RESULTS ======
% TR4: tetrahedron triangulation volume model
%

TRofSGdiff(SG,TR4)- removes tetrahedrons that have features edges which are not existing in a surface

TRofSGdiff(SG,TR4)% TRofSGdiff(SG,TR4) - removes tetrahedrons that have features edges
% which are not existing in a surface
% (by Tim Lueth, VLFL-Lib, 2015-JAN-02 as class: TETRAHEDRONS)
%
% This procedure calculates the freeBoundary of the points of a surface
% model and compares the featureEdges of the freeBoundary with the
% original featureEdges of a solid. All tetrahedrons are removed that
% create featureEdges that are not existing in the original surface.
% An optional input argument is a preprocessed tetrahedron triangulation.
% This procedure is used by TRofSG. In combination with TRofSGxor
% (removement of outside tetrahedons), TRofSGdiff (removement of outside
% tetrahedons) will create a tetrahedron triangulation for one single
% surface triangulation. This procedure works for only ONE closed surface.
% (Status of: 2015-01-02)
%
% TR4=TRofSGdiff(SG,[TR4])
% === INPUT PARAMETERS ===
% SG: Solid geometry (SG.VL,SG>FL)
% TR4: tetrahedron triangulation
% === OUTPUT RESULTS ======
% TR4: tetrahedron triangulation volume model
%

PLstar(R,nf,dw,Ry,ow,sk)- returns a 2D point list of a star or star segment

PLstar(R,nf,dw,Ry,ow,sk)% PLstar(R,nf,dw,Ry,ow,sk) - returns a 2D point list of a star or star segment
% (by Tim Lueth, VLFL-Lib, 2015-JAN-01 as class: ANALYTICAL GEOMETRY)
%
% PLstar starts not(!) at (R,0), but the first edge is going in
% y-direction. This has been done to simply generate squares or
% 2*n-Polygons. By using the offset angle, it is possible to start where
% you want. (Status of: 2018-10-13)
%
% Introduced first in SolidGeometry 2.1
%
% See also: PLknurled, PLcircle, PLcircseg, PLevolvente, PLgearDIN,
% PLhelix, PLkidney, PLrand, PLspiral, PLsquare
%
% PL=PLstar(R,[nf,dw,Ry,ow,sk])
% === INPUT PARAMETERS ===
% R: Radius
% nf: number of facets (default is nofrd (R,0.05))
% dw: circle segment ](0..2(pi] (default is 2*pi)
% Ry: Radius if ellipse (default is R)
% ow: Offset angle
% sk: shortage factor;default 0.0
% === OUTPUT RESULTS ======
% PL: Point / Vertex list
%
% EXAMPLE:
% PLstar(5,100,'','','',0.95)
%
% See also: PLknurled, PLcircle, PLcircseg, PLevolvente, PLgearDIN,
% PLhelix, PLkidney, PLrand, PLspiral, PLsquare
%
%
% Copyright 2015-2020 Tim C. Lueth

TRofSG(SG)- Creates a tetrahedron model from a surface model based on feature edges

TRofSG(SG)% TRofSG(SG) - Creates a tetrahedron model from a surface model based on
% feature edges
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-31 as class: TETRAHEDRONS)
%
% extracted from exp_2014-12-30d. Feature edges that exist in the
% freeBoundary of a delaunayTriangulation, created from the points of a
% surface model, but exist not in the surface model, can be removed
% recursively by removing the attached tetrahedrons.
% WORK in progress
% Use FEplot or exp_2014_12_30e to understand the reason for failing
% (Status of: 2015-01-02)
%
% TR=TRofSG(SG)
% === INPUT PARAMETERS ===
% SG: Solid Surface Model
% === OUTPUT RESULTS ======
% TR: Solid Tetrahedron Model
%
% EXAMPLE: Create two tetrahedron volume models from two surfaces
% VLFLfigure; view(-30,30);
% TR=TRofSG(SGofCPLz(CPLsample(12),10)); TRplot(TR)
%

FLfeatureEdgeSurface(TR3,angle)- returns a surface facet list based on a given surface triangulation

FLfeatureEdgeSurface(TR3,angle)% FLfeatureEdgeSurface(TR3,angle) - returns a surface facet list based on a given surface triangulation
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-30 as class: SURFACES)
%
% This fnctn analyses the feature edges of a surface, reconnects them
% into contours, and uses delaunay triangulation on the same points to
% recalculate the surface. It uses
% TRfeatureEdgeFacets
% PLELofFeatureEdges2
% FLofVLELn
% for reconstruction. (Status of: 2017-04-05)
%
% See also: FLfeatureEdgeSurface, FLfeatureEdgeSurface2,
% PLELofFeatureEdges, PLELofFeatureEdges2, TRfeatureEdgeFacets, FEplot
%
% FL=FLfeatureEdgeSurface(TR3,angle)
% === INPUT PARAMETERS ===
% TR3: Surface volume triangulation
% angle: filter angle for feature edges
% === OUTPUT RESULTS ======
% FL: Facet List w.r.t TR3.Points
%
% EXAMPLE: Create a solid and recreate the surface
% SG=SGsample(7);
% VLFLplots(SG.VL,
% FLfeatureEdgeSurface(triangulation(SG.FL,SG.VL),0.01),'g');
%
%

FLofVLELn(VL,EL,nv)- returns the facet list for a vertex list and a planar edge list in 3D

FLofVLELn(VL,EL,nv)% FLofVLELn(VL,EL,nv) - returns the facet list for a vertex list and a
% planar edge list in 3D
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-30 as class: AUXILIARY PROCEDURES)
%
% Similiar to FLofVLEL, using delaunayTri, bit in addition the contour is
% decomposed in facet with same normal vectors. The result is much better
% than FLofVLEL/Delaunaytri, if enough vertices are used.
% Use FLofVLEL2 (VL,EL) for optimal results
% Use FLofVLEL (VL,EL) for delaunay results
% Use FLofVL for quick and dirty results
% It is used in combination with feature edges.
% (Status of: 2012-11-17)
%
% FL=FLofVLELn(VL,EL,nv)
% === INPUT PARAMETERS ===
% VL: Vertex list
% EL: Edge list
% nv: normal vector, has to be correct
% === OUTPUT RESULTS ======
% FL: Facet list
%

PLELofFeatureEdges2(TR,alpha)- returns sorted closed polygon edge lists of the feature edges of a solid

PLELofFeatureEdges2(TR,alpha)% PLELofFeatureEdges2(TR,alpha) - returns sorted closed polygon edge lists of the feature edges of a solid
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-30 as class: SURFACES)
%
% fast and powerful fnctn that links the feature edges to closed polygon
% edge lists with a defined normal vector
% Uses: TRfeatureEdgeFacets
% In contrast to PLELofFeatureEdges2, an additional column is added that
% identifies the planes (Status of: 2017-04-05)
%
% See also: FLfeatureEdgeSurface, FLfeatureEdgeSurface2,
% PLELofFeatureEdges, TRfeatureEdgeFacets, FEplot
%
% [ELFL,SIL]=PLELofFeatureEdges2(TR,[alpha])
% === INPUT PARAMETERS ===
% TR: surface triangulation for feature edges
% alpha: feature edge angle
% === OUTPUT RESULTS ======
% ELFL:
% SIL: Selected Index List for
%
% EXAMPLE: Recreate the polygons of a
% closeall; SG=SGsample(16);
% TR=triangulation(SG.FL,SG.VL);
% VLFLfigure; [ELFL,SIL]=PLELofFeatureEdges (TR);
%

exp_2014_12_31 (nr)- EXPERIMENT to reconstruct the surface

exp_2014_12_31 (nr)% exp_2014_12_31 (nr) - EXPERIMENT to reconstruct the surface
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-30 as class: EXPERIMENTS)
%
% exp_2014_12_31([nr])
% === INPUT PARAMETERS ===
% nr: SGsample number or CPLsample number
%

exp_2014_12_30- EXPERIMENT to develop the function TRofSG

exp_2014_12_30% exp_2014_12_30 - EXPERIMENT to develop the fnctn TRofSG
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-30 as class: EXPERIMENTS)
%
% There exist several experiments of this day
% exp_2014_12_30: showing the freeBoundary of delaunayTriangulation
% exp_2014_12_30b: showing the additional featureEdges
% exp_2014_12_30c: development of TRofSGdiff
% exp_2014_12_30d: core part of TRofSGdiff
% exp_2014_12_30e: showing the method of TRofSGxor
% exp_2014_12_30f: show the final use of TRofSG
% (Status of: 2015-01-02)
%
% exp_2014_12_30
%
% EXAMPLE: Testing TRofSG;
% exp_2014_12_30f(7)
%

exp_2014_12_29(nr)-

exp_2014_12_29(nr)% exp_2014_12_29(nr) -
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-29 as class: EXPERIMENTS)
%
% NL=exp_2014_12_29([nr])
% === INPUT PARAMETERS ===
% nr:
% === OUTPUT RESULTS ======
% NL:
%

exp_2014_12_26b(n)- EXPERIMENT extruding different CPL analyzing inside & outside points

exp_2014_12_26b(n)% exp_2014_12_26b(n) - EXPERIMENT extruding different CPL analyzing
% inside & outside points
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-26 as class: EXPERIMENTS)
%
% procedure 2014_12_26 generates CPLs using CPLsample.
% In comparison to 2014_12_26, this procedure also analyzes the
% individual contours of the inside facets to compare the use of
% tetrahedrons that consists only of points of inside or only of points
% of outside. In SGsample(9) we see that the surface points of inner
% surfaces are also used for outside surfaces. So, it is not unique to
% extract tetrahedrons just from the points list
% THE STILL EXISTING PROBLEM CAN BE SEEN WITH CPLsample(8) AND
% CPLsample(9): (Status of: 2014-12-27)
%
% fa=exp_2014_12_26b([n])
% === INPUT PARAMETERS ===
% n: n for CPLsample
% === OUTPUT RESULTS ======
% fa:
%

exp_2014_12_26 (n)- EXPERIMENT extruding different CPL analyzing outside points

exp_2014_12_26 (n)% exp_2014_12_26 (n) - EXPERIMENT extruding different CPL analyzing
% outside points
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-26 as class: EXPERIMENTS)
%
% procedure 2014_12_26 generates CPLs using CPLsample.
% In comparison to 2014_12_26b, this procedure analyzes the individual
% contours of the inside facets to compare the use of tetrahedrons that
% consists only of points of outside. In SGsample(9) we see that the
% surface points of inner surfaces are also used for outside surfaces.
% So, it is not unique to extract tetrahedrons just from the points list
% THE STILL EXISTING PROBLEM CAN BE SEEN WITH CPLsample(8) AND
% CPLsample(9): (Status of: 2014-12-26)
%
% exp_2014_12_26([n])
% === INPUT PARAMETERS ===
% n: n for CPLsample
%

CPLsample(Nr,T)- returns a a closed polygon list for different tests and experiments

CPLsample(Nr,T)% CPLsample(Nr,T) - returns a a closed polygon list for different tests and experiments
% (by Tim Lueth, VLFL-Lib, 2014-DEZ-26 as class: CLOSED POLYGON LISTS)
%
% Calling without an output parameter will always show the polygons
% Calling without an input parameter will show all sample polygons
% CPLsample can be called recursively to show the effect of fnctns used
% on CPLsample-contours
% Use CPLorder afterwards to order them.
% Use CPLunite/CPLrecontour to process them. (Status of: 2021-03-30)
%
% Introduced first in SolidGeometry 2.1
%
% See also: CPLoftext, SGsample, VLsample, PLsample, VLFLsample,
% CSGsample, SGerrorsample, SGfischertechniksample, SGcmdsample,
% VLsampletriangles, CVLzsample
%
% [CPL,TR3]=CPLsample([Nr,T])
% === INPUT PARAMETERS ===
% Nr: Number of sample closed polygon list or specific CPL for display
% T: Parameter for SGtrans (Value, Vector, Matrix)
% === OUTPUT RESULTS ======
% CPL: Closed Polygon List
% TR3: Optional delaunay triangulation of CPL using PLELofCPL
%
% EXAMPLE: Recontour overlapping contours
% CPLsample(16)
% CPLsample(CPLrecontour(CPLsample(16)))
% CPLsample(CPLrecontour(flip(CPLsample(16))))
%
% See also: CPLoftext, SGsample, VLsample, PLsample, VLFLsample,
% CSGsample, SGerrorsample, SGfischertechniksample, SGcmdsample,
% VLsampletriangles, CVLzsample
%
%
% Copyright 2014-2021 Tim C. Lueth
RapidWeaver Icon

Last Change Oct 2023 for SG-Lib 5.3
